B45VAS2-FIXEDFLOAT-VORTEX-PUMP – Submersible Vortex Pump 200LPM 8.5M
$548.20
In stock
The BIA B45VAS2-FF is a rugged vortex type drainage pump fitted with a cast iron semi vortex impeller. With a free passage of 25mm this pump is suitable for general drainage applications with clean or slightly dirty water.
Fitted with a vertical ‘fixed’ float this pump is compact and suitable for use in situations where space is limited
Ideal for greywater pump out, sump emptying or pumping of light slurries from cellars, ditches, pits, ponds and drains
BENEFITS
- Easy installation and automatic operation
- Float motion is managed reducing the risk of snagging
Features
- Quality pump materials and construction to ensure reliable operation
- Carry handle
- Industrial grade coating
- 10m H07RN-F Neoprene power lead and float lead
To ensure adequate motor cooling, as per the user manual, exercise care matching pump and chamber size to prevent the risk of cycling (too many stops/starts per hour) or continuous running.

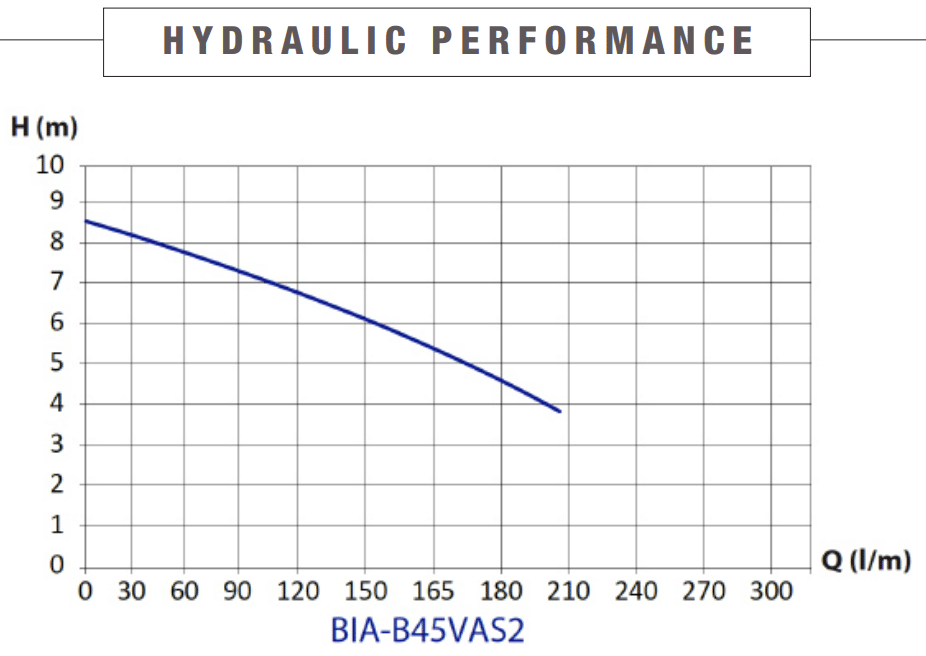

HYDRAULIC PERFORMANCE
PUMP CURVE DIMENSIONS
Bianco BIA-B45VAS2 Submersible Vortex Pump
802768
The pump is a submersible drainage pump fitted with cast iron semi vortex impeller. The pump can handle particles up to 15mm.
The pump is characterised by:
- Cast iron pump body and impeller for durability
- Fully automatic operation.
- Dual mechanical seal – carbon/ceramic
- Handy carry handle
- Universal hose tail adaptor
- 240V single phase motor with in-built auto reset thermal overload.
- 10m of power cable.
- Dewatering of cellars, etc.
- Pumping clean or slightly dirty water
- Flows to: 317 L/min
- Heads to: 10.2m
- Weight: 19KG
- Warranty: 2 Years
Technical Specifications
| Brand | Bianco Pumpz |
| Product Type | Sump Pump |
| Suitable For | Dirty Water With Soft Solids |
| Bar | 0.85 Bar |
| Flow Range Category | c. 200 – 299 L/min |
| Flow Rate (L/min) | 200 L/min |
| Float | Float Included |
| Hp | 0.6 Hp |
| kPa | 85 kPa |
| Kilo Watts | 0.45 kW |
| Head Range Category | a. 0 – 39 m |
| Max Head (m) | 8.5 m |
| Port Size Outlet | 2″ BSPF outlet |
| Powered | Electric |
| Volts | 240 V |
| Warranty (months) | 24 Months |
| Watts | 450 W |
Additional information
| Weight | 18 kg |
|---|---|
| Dimensions | 26 × 20 × 52 cm |
