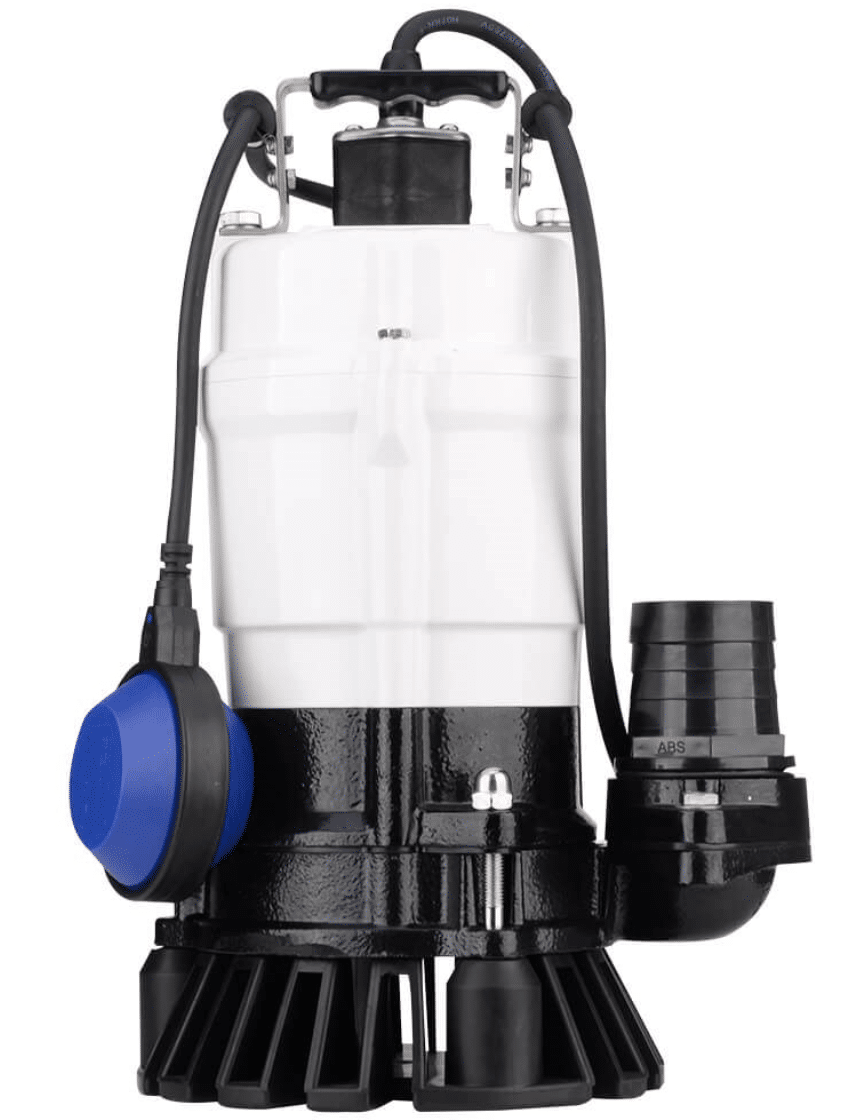

BIA-HSA750 – HS Series Submersible Commercial Construction Auto Pump with Float 18m Max Head 0.75kW
$554.25
In stock
Features
Designed for de-watering of construction sites, pits, storm water and basements where there is abrasive material.
Features:
- Industrial grade coating
- Stainless Steel Handle
- Easy service round style float
- Corrosion resistant pump components
- Automatic and manual operations available
- Dual mechanical seal in oil bath, silicon carbide/silicon carbide + carbon ceramic
- Fitted with semi-vortex, urethane coated impeller which allows pumping of suspended solids, sandy and stringy material
- Agitator on the end of the pump shaft helps prevent air locking and clogging
- Versatile outlet connection
- 240V single phase motor with in-built auto reset thermal overload
- 10m of power cable (H07RNF)
- Urethane strainer resists damage
- Can handle particles to 25mm x 10mm
- Water temperature range: 2ºC to 35ºC
- Maximum submergence: 20m
Bianco BIA-HSA750 Submersible Construction Auto Pump
Designed for de-watering of construction sites, pits, storm water and basements where there is abrasive material. AS/NZS4020 Approved for drinking water, 5 star energy rating, 750 watts.
Features:
-
- Industrial grade coating
- Stainless Steel Handle
- Easy service round style float
- Corrosion resistant pump components
- Automatic and manual operations available
- Dual mechanical seal in oil bath, silicon carbide/silicon carbide + carbon ceramic
- Fitted with semi-vortex, urethane coated impeller which allows pumping of suspended solids, sandy and stringy material
- Agitator on the end of the pump shaft helps prevent air locking and clogging
- Versatile outlet connection
- 240V single phase motor with in-built auto reset thermal overload
- 10m of power cable (H07RNF)
- Urethane strainer resists damage
- Can handle particles to 25mm x 10mm
- Water temperature range: 2ºC to 35ºC
- Maximum submergence: 20m
- 24 Month Warranty
LIQUID:
Clean water temperature range: 2° – 35°C
MATERIALS:
Pump body: Cast Iron
Strainer: Urethane
Impeller: Urethane coated semi vortex
Shaft: Stainless Steel 403
Shaft seal: Dual Mechanical in oil bath, Silicon
Carbide/Silicon Carbide + Carbon/Ceramic
INSTALLATION:
Maximum ambient temperature: 40 °C
Maximum submergence: 20m
Pipe connections discharge: 2”
Also available
BIA-LAYFLATKIT (700755) Lay Flat Hose 20m, 2
Technical Specifications
| Brand | Bianco Pumpz |
| Product Type | Drainage Pump |
| Suitable For | Dirty Water |
| Bar | 1.8 |
| Flow Range Category | c. 200 – 299 L/min |
| Flow Rate (L/min) | 250 L/min |
| Float | Yes |
| Hp | 1 Hp |
| kPa | 176 kPa |
| Kilo Watts | 0.75 kW |
| Head Range Category | a. 0 – 39 m |
| Max Head (m) | 18 m |
| Port Size Outlet | 2″ Hose Tail |
| Powered | Electric |
| Dimensions | 300L x 415W x 185H (mm) |
| Volts | 240 V |
| Warranty (months) | 24 Months |
| Watts | 750 W |
Pack Weight: 19.2KG
Additional information
| Weight | 20 kg |
|---|---|
| Dimensions | 33 × 21 × 47 cm |
