BIA-HSM750 – HS Series Submersible Commercial Construction Manual Pump 18m Max Head 0.75kW
$524.00
In stock
Features
Designed for de-watering of construction sites, pits, storm water and basements where there is abrasive material.
Features:
- Industrial grade coating
- Stainless Steel Handle
- Easy service round style float
- Corrosion resistant pump components
- Automatic and manual operations available
- Dual mechanical seal in oil bath, silicon carbide/silicon carbide + carbon ceramic
- Fitted with semi-vortex, urethane coated impeller which allows pumping of suspended solids, sandy and stringy material
- Agitator on the end of the pump shaft helps prevent air locking and clogging
- Versatile outlet connection
- 240V single phase motor with in-built auto reset thermal overload
- 10m of power cable (H07RNF)
- Urethane strainer resists damage
- Can handle particles to 25mm x 10mm
- Water temperature range: 2ºC to 35ºC
- Maximum submergence: 20m

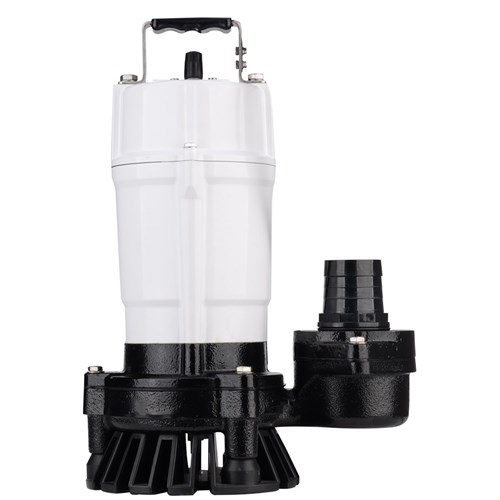

Bianco BIA-HSM750 Submersible Construction Manual Pump
The Bianco HSM750 is a submersible pump specifically designed for use in concrete plants, quarries and construction sites for the pumping of water containing sand, sediment, mud and other abrasive material with small solids up to 10 mm x 25 mm diameter. The Bianco HSM750 has a urethane coated impeller, dual silicon carbide/ carbon ceramic mechanical seal that runs in an oil bath and agitator on the end of the pump shaft to prevent air locking and clogging. The pump is powered by a 0.75 kW 240 V motor and comes with a 10 m power lead with 3 pin plug.
Pump discharge is 50 mm.
.NO float.
Features:
-
- Industrial grade coating
- Stainless Steel Handle
- Easy service round style float
- Corrosion resistant pump components
- Automatic and manual operations available
- Dual mechanical seal in oil bath, silicon carbide/silicon carbide + carbon ceramic
- Fitted with semi-vortex, urethane coated impeller which allows pumping of suspended solids, sandy and stringy material
- Agitator on the end of the pump shaft helps prevent air locking and clogging
- Versatile outlet connection
- 240V single phase motor with in-built auto reset thermal overload
- 10m of power cable (H07RNF)
- Urethane strainer resists damage
- Can handle particles to 25mm x 10mm
- Water temperature range: 2ºC to 35ºC
- Maximum submergence: 20m
- 24 Month Warranty
LIQUID:
Clean water temperature range: 2° – 35°C
MATERIALS:
Pump body: Cast Iron
Strainer: Urethane
Impeller: Urethane coated semi vortex
Shaft: Stainless Steel 403
Shaft seal: Dual Mechanical in oil bath, Silicon
Carbide/Silicon Carbide + Carbon/Ceramic
INSTALLATION:
Maximum ambient temperature: 40 °C
Maximum submergence: 20m
Pipe connections discharge: 2”
Also available
BIA-LAYFLATKIT (700755) Lay Flat Hose 20m, 2
Technical Specifications
| Brand | Bianco Pumpz |
| Product Type | Drainage Pump |
| Suitable For | Dirty Water |
| Bar | 1.8 |
| Flow Range Category | c. 200 – 299 L/min |
| Flow Rate (L/min) | 250 L/min |
| Float | No |
| Hp | 1 Hp |
| kPa | 176 kPa |
| Kilo Watts | 0.75 kW |
| Head Range Category | a. 0 – 39 m |
| Max Head (m) | 18 m |
| Port Size Outlet | 2″ Hose Tail |
| Powered | Electric |
| Dimensions | 300L x 415W x 185H (mm) |
| Volts | 240 V |
| Warranty (months) | 24 Months |
| Watts | 750 W |
Pack Weight: 19.2KG
Additional information
| Weight | 20 kg |
|---|---|
| Dimensions | 33 × 21 × 46 cm |
