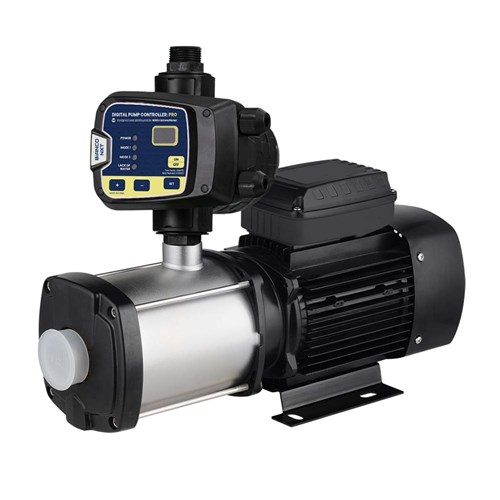

BIA-MULTI56NXTP – Horizontal Multi Stage Pump with nXt PRO Pump Controller 60m 1.3kW 240V
$766.00
In stock
The pump is a horizontal multistage pressure system pump supplied wired and ready to install. Used especially for supplying water to domestic installations.
The pump is characterised by:
- Automatic electronic pump control fitted and wired.
- Automatic electronic control provides run dry protection and constant pressure at low flows. Automatic electronic control has auto restart and in-built check valve.
- Corrosion resistant pump body, diffuser and impeller.
- Mechanical shaft seal.
- Stainless Steel barrel union
- Comes complete with plug and play leads.
- 240V single phase TEFC motor with in-built auto reset thermal overload.
- Flows to 105 l/m
- Heads to 56m
Electrical data:
Rated voltage: 240V
Mains frequency: 50 Hz
Rated output: 1300W
Horse Power: 1.7HP
Flow Rate: 105L/m
Taps: 10 taps
Current: 8.7 amps
Capacitor: 40uF
Motor duty: Continuous
Motor Type: Asynchronous, TEFC
Motor Protection: In-built thermal overload
Ingress protection: IP 55
Insulation class: F
Power cable length: 1.2 m H07RNF
Gross weight: 20 kg
Pump Dimensions: 446L x 178W x 385mmH
Liquid: Clean water temperature range: 2-50 °C
Materials: Pump body, Diffuser, Impeller: Stainless Steel Mechanical seal: Carbon/Ceramic/Nitrile o rings: Nitrile
Installation: Maximum ambient temperature: 50 °C
Maximum operating pressure: 8 bar
Pipe connections suction/discharge: 1.25 ” BSP F / 1″ BSP M
2 Year Bianco Pumpz Warranty
Controller
This pump includes the Bianco iCON nXt PRO series of pump controller.
The nXt PRO Controller is designed and tested in Australia to ensure operation in the toughest of environments, combining innovative technology with robust proven architecture to guarantee constant supply of pressurised water when and where you need it the most.
Controller Features
- Digital display gives you a real time indication of system pressure
- Anti-cycle Protection
- Dry run protection with auto restart function that tests for water availability every 24hrs
- Anti-seize function if pump has not operated for last 24 hours
- Controller automatically restarts pump after a power failure
- Easy assembly and removal using push-n-connect fitting with U clip
- Complies to AS/NZ 4020 drinking water standard
- Over pressure protection turns pump off when 10 bar is reached
- Overload protection
Controller Modes
Two operational modes:
- Mode One – Adjustable cut in pressure setting.
- Controller stops pump when flow drops.
- Mode Two – Adjustable cut in and cut out pressure.
- Shut down governed by pressure. Requires pressure tank.
Controller Flow Curve
| nXt PRO Controller Data | |
|---|---|
| Function | ON/OFF + Config |
| Modes | 2 |
| Size | 2.2Kw |
| Rated Voltage | 220-240V AC |
| Max Amps | 16 |
| Rated Power | 2200w |
| Rating | IP65 |
| Union Size | 1″ |
| Start Pressure | Adjustable |
| Stop Pressure | Adjustable |
| Max Pressure | 10 bar (145PSI) |
| Max Liquid Temp | 40°C |
| Cable to Pump | Plug and Play |
| Flylead for Pump | When sold as control only |
| Power Cable | 10AMP |
| Communication | – |
| Accessories (Sold Separately) | 15 AMP Cable |
| 1 ¼” Union Kit | |
Additional information
| Weight | 19 kg |
|---|---|
| Dimensions | 45 × 25 × 44 cm |
