CMB-SP 3-47 I-C-A-A-C-A 1×220-230V 50Hz
$971.58
In stock

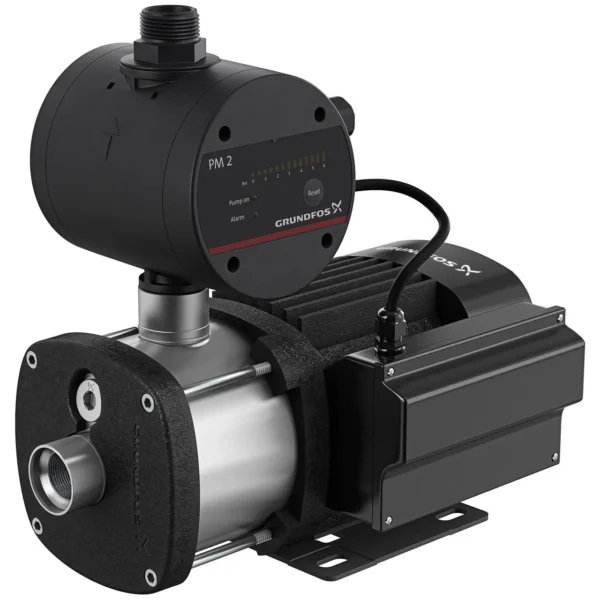

The Grundfos CM Booster self-priming pump with PM2 pressure manager is a compact booster solution for water supply in domestic applications. The pressure booster unit consists of a Grundfos CM self-priming pump and a Grundfos PM2 pressure manager. The pressure manager allows the pump to start and stop automatically according to demand and protects the pump from dry running. It also features automatic restart after dry running and adjustable start pressure. The CM Booster self-priming pump can create a suction lift of up to 8 m, and it is very easy to install. When the system has been connected to the pipes, it is all a matter of inserting the plug into a power supply socket, and the system is operational.
The Grundfos CM Booster self-priming pump with PM2 pressure manager is mainly used for domestic and light commercial water supply or booster systems.
Features
- compact
- easy installation
- self-priming up to 4 m
- automatic resetting of alarms
- dry-running protection
- anti-cycling (leakage detection)
- maximum continuous operating time.
Applications:
The Grundfos CM Booster self-priming pump with PM2 pressure manager is mainly used for domestic and light commercial water supply or booster systems.
Specifications
Motor / power: 500W
Max. flow: 50LT/min
Head: 47m
Inlet: 1″F / 25mm
Outlet: 1″M / 25mm
Pressure: 470kPa
Body: 304 Stainless Steel
Diffuser: Technopolymer
Impeller:304 Stainless Steel
Pump Shaft: 304 Stainless Steel
Mechanical Seal : Carbon with resin/ceramic
Start pressure: PM2 bar
Components: – Self-priming pump CM-SP – Cable 1.2 m with plug
Complete unit: Delivered as a pre-assembled compact unit
Maximum suction lift: 4 m (8m with foot valve)
Liquid temperature: 0°C to +60°C
Ambient temperature: 0°C to +55°C
Supply voltage: 1 x 240 Volt 50 Hz
System pressure: Maximum 10 bar
Enclosure class: Suitable for covered installation (IP55)
Warranty on pump: 2 Years
Code: 98507629
The table below gives a brief comparison of the features of the PM 1 and PM 2. The main features are described beneath the table:
Additional information
| Weight | 21 kg |
|---|---|
| Dimensions | 46 × 28 × 39 cm |
