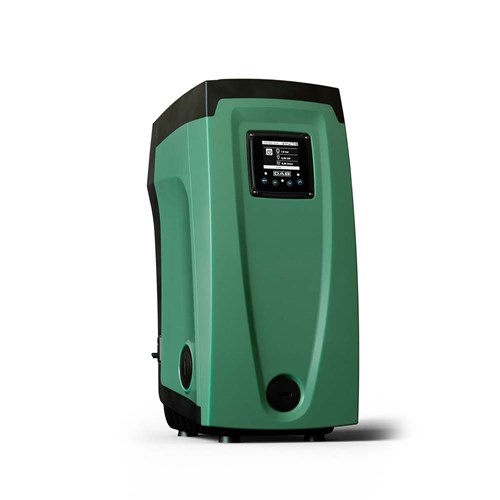

DAB-ESYBOX – PUMP VARIABLE SPEED PRESSURE SYSTEM 120L/MIN 61M 1.4KW 240V
$1,945.75
In stock
INTRODUCING THE NEW & IMPROVED 2025 V2 VERSION OF THE MUCH LOVED DAB ESYBOX RANGE.
Multi-impeller self-priming electronic system for pressurization, rainwater reuse, drawing ground water, gardening and irrigation and agriculture and irrigation in residential building service and commercial building service. Possibility to connect up to four EsyBox together to create pressure units. It can be used for villas and small apartment complexes with up to 6 floors and 9 apartments.
Adjustable LCD display. Integrated connectivity allows immediate access to cloud services, without any additional accessories. The remote control works thanks to the DConnect, for viewing and managing parameters, settings and comfort functions. The careful choice of materials and the water-cooled motor make the pump particularly quiet, just 43 dB, suitable for installation even in living areas. Can be positioned vertically, horizontally or on the wall with special accessories (supplied separately). With the same performance, consumption is even lower.
AS/NZS 4020 Approved for drinking water.
Water cooled motor and sound dampening casing creating the quietest booster pump available today
Energy efficient variable speed motor operating from 0.3kW to 1.4kW
Powerful performance flow up to 2 litres per second and head up to 8 Bar
Dry run protection
Flexible installation with horizontal or vertical position and wall mounting accessory kit
Self priming down to 8 metres suction
Frost protection
Anti-vibration mountings

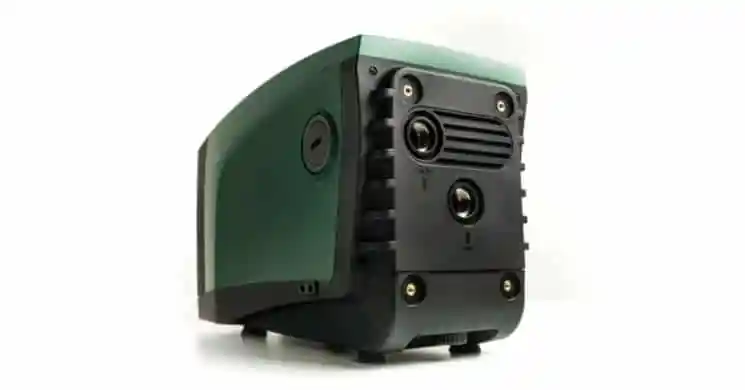

Variable positions for inlet and outlet pipework
Integrated chamber with expansion vessel, tool kit and installed manual
Wireless connectivity and modular design can expand the pump system up to a 4 pump booster set
Integrated modular water storage tank system with Cat 5 connection
Saves 30% of space in comparison to a traditional system
Quiet operation 43 dB in standard use
Weight: 27KG
Technical Specifications
| Brand | DAB Pumps |
| Product Type | Pressure System |
| Suitable For | Clean Water |
| Bar | 8 Bar |
| Approval | Approved For Drinking Water |
| Flow Range Category | b. 100 – 199 L/min |
| Flow Rate (L/min) | 120 L/min |
| Hp | 1.9 Hp |
| kPa | 800 kPa |
| Kilo Watts | 1.4 kW |
| Head Range Category | c. 60 – 99 m |
| Max Head (m) | 61 m |
| Port Size Inlet | 1″ BSPF inlet |
| Port Size Outlet | 1″ BSPF outlet |
| Powered | Electric |
| Taps | 12 Taps |
| Warranty (months) | 24 Months |
| Volts | 240 V |
| Watts | 1400 W |
ESYBOX Tutorial – Horizontal Installation
ESYBOX Tutorial – Vertical Installation
ESYBOX Tutorial – Wall Installation
Additional information
| Weight | 27 kg |
|---|---|
| Dimensions | 68 × 35 × 46 cm |
