Grundfos Unilift CC pumps are single-stage submersible pumps with a low suction ability down to 3 mm water level. The pumps are designed for pumping rainwater and grey wastewater, e.g. from

The pumps are suitable for both stationary and portable use. They are for automatic operation. The pumps allow free passage of particles up to ø10 mm.

The motor incorporates automatic overload protection cutting out the motor in case of overload. When cooled to normal temperature, the motor restarts automatically.

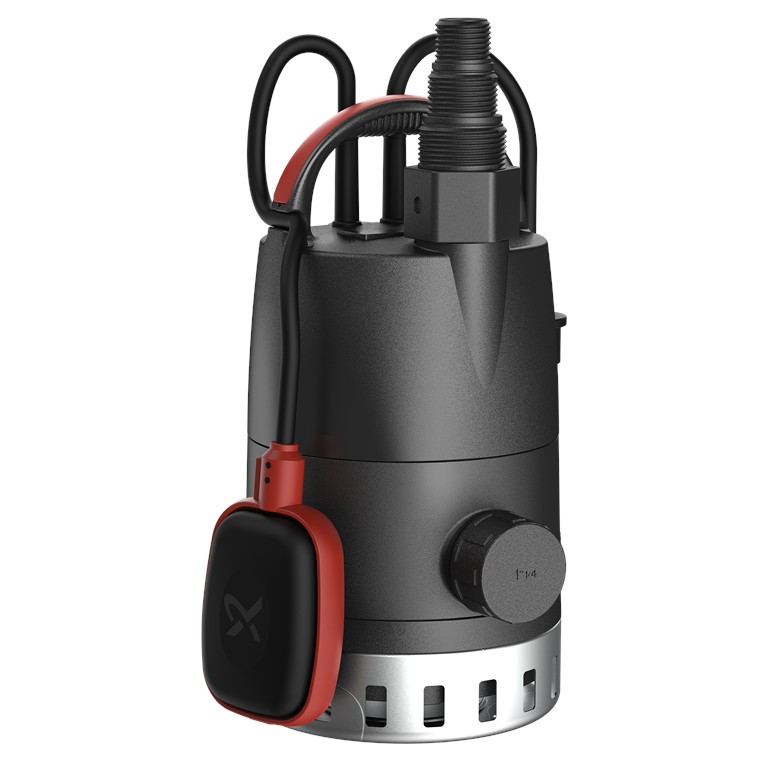

Grundfos Unilift CC-5 Single Stage Submersible Pump
96280972

Grundfos Unilift CC pumps are single-stage submersible pumps with a low suction ability down to 3 mm water level. The pumps are designed for pumping rainwater and grey wastewater, e.g. from:

• Washing machines, baths, sinks, etc. from low-lying parts of buildings up to sewer level
• Cellars or buildings prone to flooding draining wells
• Wells for surface water with inlets from roof gutters, pits, tunnels, etc.
• Swimming pools, ponds or fountains.

The pumps are suitable for both stationary and portable use. They are for manual operation. The pumps allow free passage of particles up to ø10 mm. The pump has dual outlet, allowing easy adaption to existing pipes.

The motor incorporates automatic overload protection cutting out the motor in case of overload. When cooled to normal temperature, the motor restarts automatically.

Technical
Max Flow: 1.67L/S
Max Head: 5m
Maximum particle size: 10mm
Approvals: CE,LGA,VDE,RCM

Materials
Pump housing: PP15GF
Impeller: PPoM20GF

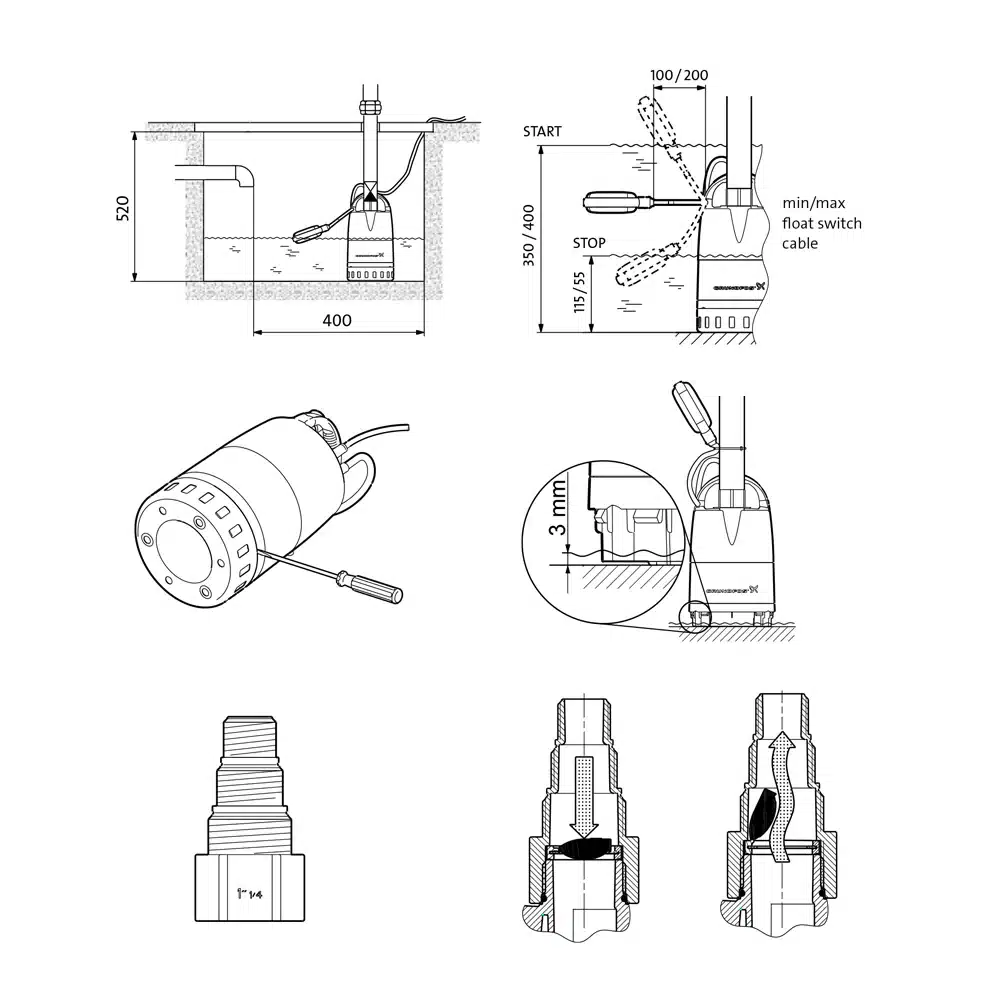

Installation
Pump outlet: 1.1/4″
Range of Ambient Temp: 0 – 40 °C
Max Installation Depth: 2m
Type of Connection: R

Liquid
Pumped liquid: any viscous fluid
Density: 998.2 kg/m3

Electrical data
Power input 1: 250W
Main frequency: 60 Hz
Rated Speed: 2850 rpm
Rated voltage: 1 x 115 V
Rated current: 2.1 A
Capacitor size – run: 13 µF/250 V
Enclosure class (IEC 34-5): IP68
Insulation class (IEC 85): B
Type of cable plug: NEMA 5

Others
Net weight: 4.51 KG
Gross weight: 5.27 KG
